A 5 micron liquid filter bag is designed for fine particle removal in industrial liquids where conventional 10, 25 or 50 micron filtration does not provide sufficient cleanliness.
It is commonly used for liquid clarification, polishing, equipment protection and intermediate filtration before finer cartridges or sensitive downstream equipment.
However, choosing a 5 micron bag does not simply mean choosing “better filtration.” Moving to a finer micron rating can also increase pressure drop and shorten filter life if the process contains a high concentration of suspended solids.
The correct 5 micron filter bag should therefore be selected according to the particle size, filter media, solids loading, liquid viscosity, flow rate and required filtration efficiency.
INCE filtration manufactures industrial liquid filter bags in polypropylene, polyester, PTFE and other filtration media, including 5 micron configurations for fine process filtration.
What Does a 5 Micron Filter Bag Remove?
One micron, or micrometer (µm), equals 0.001 mm.
Therefore:
5 micron = 0.005 mm
A 5 micron filter bag is used for removing relatively fine suspended contamination from a liquid.
Depending on the application, this may include:
- Fine sediment
- Rust particles
- Process debris
- Small agglomerates
- Metal fines
- Precipitated solids
- Fine suspended contamination
- Particles that pass through coarser pre-filters
However, the number “5 micron” should not automatically be interpreted as a guarantee that every particle larger than exactly 5 µm will be removed.
Actual retention depends on the filter media and its efficiency rating.
When Is 5 Micron Filtration Appropriate?
Five micron filtration is normally selected when the process needs finer particle control than general-purpose industrial filtration.
Typical situations include:
- 10 micron filtration does not provide sufficient clarity
- Fine solids need to be removed before sensitive equipment
- A liquid requires a polishing stage
- Downstream cartridge filters need protection
- Product contamination must be reduced before filling or transfer
- Fine sediment affects process consistency
INCE filtration’s wider liquid filter bag range classifies 5 µm as a fine-particle-removal grade, while 10 µm is used for precision process filtration and larger ratings are progressively more suitable for general or coarse filtration.

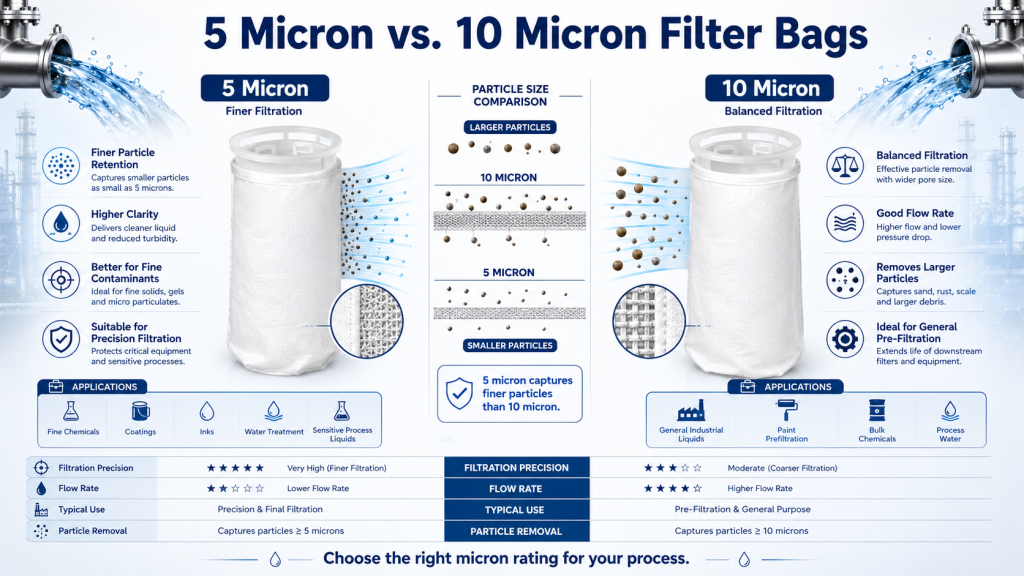

5 Micron vs. 10 Micron Filter Bags
This is one of the most common selection questions.
| Feature | 5 Micron | 10 Micron |
|---|---|---|
| Filtration level | Finer | Slightly coarser |
| Small-particle removal | Higher potential | Moderate fine filtration |
| Initial flow resistance | Generally higher | Generally lower |
| Plugging risk | Higher with dirty liquids | Lower |
| Typical use | Fine filtration / polishing | General precision filtration |
| Pre-filtration need | Often useful | Depends on solids load |
Choose 5 micron when particles passing through a 10 micron stage are causing a process or product-quality problem.
Choose 10 micron liquid filter bag when it already provides sufficient cleanliness and longer service life is more valuable than additional fine-particle retention.
A smaller micron number should not be selected unless the process actually requires it.

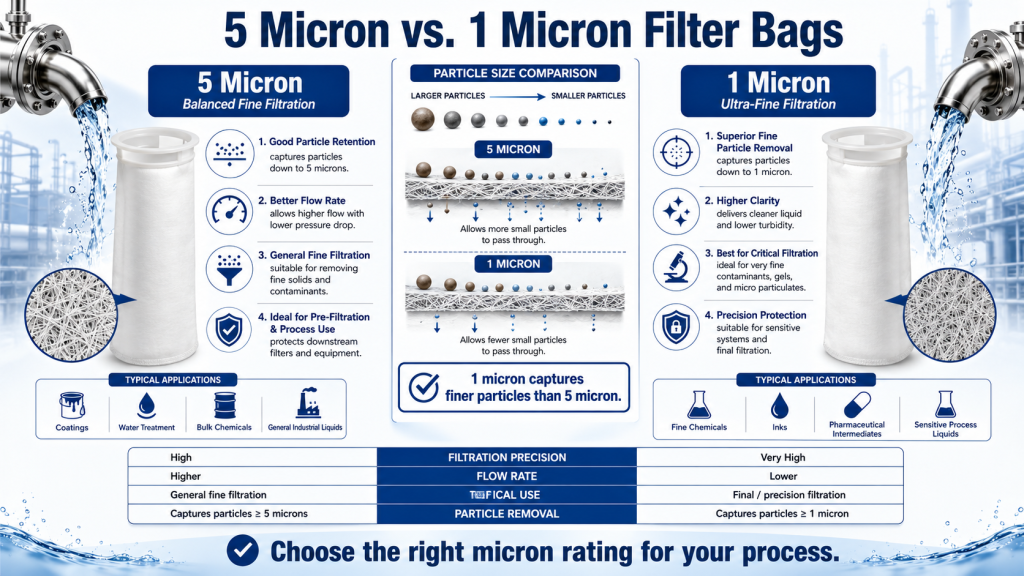

5 Micron vs. 1 Micron Filter Bags
A 1 micron filter bag provides even finer filtration, but it can load much more rapidly in contaminated liquids.
A 5 micron bag is often a better intermediate step when:
- 1 micron filtration is unnecessarily fine
- Maintaining practical flow is important
- Solids concentration is moderate
- The process needs fine clarification rather than final ultra-fine polishing
For some systems, a staged arrangement is more efficient:
25 micron → 5 micron → final cartridge
instead of sending a dirty liquid directly through a 1 micron element.
Why Pre-Filtration Matters at 5 Micron
Fine filter bags can become overloaded quickly when the liquid contains significant coarse contamination.
Imagine a process stream containing:
- Large particles above 100 µm
- Medium particles between 25 and 100 µm
- Fine particles below 25 µm
If a 5 micron bag is installed as the only filter, it must capture nearly the entire contaminant load.
That can result in:
- Rapid differential-pressure increase
- Reduced flow
- Short filter life
- Frequent bag replacement
- Higher operating cost
A better arrangement may be:
100 micron pre-filter → 25 micron → 5 micron
or:
50 micron filter bag → 5 micron filter bag → fine cartridge
The exact design depends on the contaminant distribution and required outlet quality.
Polypropylene 5 Micron Filter Bags
Polypropylene is one of the most common materials for 5 micron industrial liquid filtration.
PP felt provides a depth-filtration structure in which contaminants can be captured throughout the thickness of the media.
Typical advantages include:
- Good compatibility with many industrial chemicals
- Economical replacement cost
- Good dirt-holding capacity
- Low moisture absorption
- Broad industrial use
Common applications include:
- Process water
- Chemical solutions
- Electroplating liquids
- Coatings
- Cleaning liquids
- Industrial recirculation systems
INCE filtration already manufactures a dedicated range of 5 micron PP liquid filter bags, including multiple standard sizes, plastic and stainless-steel ring options, and sewn or welded constructions.
For detailed PP specifications, the dedicated 5 micron polypropylene product page should be used rather than duplicating the same specifications here.
Polyester 5 Micron Filter Bags
Polyester felt is another important option for fine liquid filtration.
Compared with polypropylene, polyester is often considered when the application requires:
- Better abrasion resistance
- Greater mechanical strength
- Higher operating-temperature capability
- Compatibility with oils or selected process liquids
Typical applications can include:
- Lubricating oils
- Paints and coatings
- Metalworking liquids
- Process water
- Industrial cleaning systems
Material selection should always be based on actual chemical compatibility rather than assuming one polymer is universally better.
PTFE 5 Micron Filter Bags
PTFE may be considered when aggressive chemicals or higher operating temperatures make standard PP or polyester media unsuitable.
INCE filtration’s PTFE filter bag range includes 5 micron as a fine-filtration option, together with multiple other filtration grades.
Because PTFE is a specialized material, it is usually selected for chemical and thermal compatibility rather than because the application simply requires a 5 micron rating.
Felt vs. Mesh at 5 Micron
For 5 micron liquid filtration, felt or other fine-depth filtration media are much more common than conventional industrial mesh.
Felt Filtration
Needle felt provides a three-dimensional fiber network.
Particles may be captured:
- On the media surface
- Between fibers
- Within the depth of the material
This provides useful dirt-holding capacity for fine suspended particles.
Mesh Filtration
Woven mesh primarily works through surface screening with defined openings.
Mesh is generally more common at larger micron ratings and for coarse straining applications.
For most industrial 5 micron nylon filter bag applications, depth filtration is therefore the more typical construction.
Nominal vs. Absolute 5 Micron Filtration
This distinction is especially important at fine micron ratings.
Many conventional felt filter bags are nominally rated.
A nominal 5 micron bag may capture a high proportion of particles around the stated size, but this does not automatically mean it provides 100% removal at 5 µm.
For critical particle control, buyers should ask:
- Is the filter nominally or absolutely rated?
- What retention efficiency is provided?
- What test method is used?
- Is a filter bag appropriate as the final filtration stage?
Some applications requiring tightly controlled removal may be better served by a high-efficiency bag or cartridge after the 5 micron pre-filtration stage.
Applications of 5 Micron Liquid Filter Bags
Process Water Filtration
Fine sediment can remain in industrial water even after coarse filtration.
A 5 micron bag can help reduce:
- Fine rust
- Sediment
- Pipeline debris
- Suspended solids
before the water reaches sensitive equipment or another filtration stage.
RO Pre-Filtration
Bag filtration can be used upstream of finer cartridge filtration in larger RO treatment systems.
A possible filtration sequence is:
coarse bag filter → 5 micron bag → cartridge filtration → RO
The exact configuration depends on feed-water quality and the RO system design.
A 5 micron bag should not automatically be treated as the sole protection stage for every RO membrane system.
Paints, Coatings and Inks
Fine contamination in paints and coatings can affect:
- Surface appearance
- Nozzle performance
- Product consistency
- Final finish
A 5 micron bag may be suitable for selected formulations where finer contaminant removal is required.
However, filtration should not remove desirable pigments or other formulation components.
Particle distribution and product viscosity should therefore be evaluated first.
Chemical Processing
Fine suspended solids can enter chemical streams from:
- Raw materials
- Reactions
- Storage tanks
- Pipelines
- Transfer operations
A 5 micron filter bag may be used before final processing, filling or another purification stage.
Filter media must be chemically compatible with the actual liquid.
Metalworking and Cleaning Fluids
Machining and industrial cleaning systems can generate:
- Fine metal particles
- Abrasive debris
- Dirt
- Process residues
Five micron filtration can help maintain cleaner circulating liquids where fine contamination creates equipment or quality problems.
Oil Filtration
A 5 micron filter bag may also be used for compatible oils, but viscosity is a major consideration.
Compared with water, higher-viscosity oils can generate much greater pressure drop through fine media.
When filtering viscous liquids, evaluate:
- Operating temperature
- Flow rate
- Filter area
- Pump capacity
- Allowable differential pressure
In some systems, using multiple filter bags or increasing filtration area is more effective than simply installing a finer bag.
What Determines 5 Micron Filter Bag Life?
There is no universal replacement interval.
Service life depends mainly on:
Solids Concentration
Higher contamination means faster loading.
Particle Distribution
Large quantities of particles close to or above 5 micron can fill the media quickly.
Flow Rate
Higher flow can increase filtration stress and differential pressure.
Liquid Viscosity
Viscous liquids require more pressure to pass through fine filtration media.
Filtration Area
Larger filtration area distributes the contaminant load over more media.
Upstream Filtration
Removing coarse solids first can dramatically extend 5 micron bag life.
For industrial installations, differential pressure is generally more useful than calendar time for determining when a bag has reached the end of its practical service life.
Standard and Custom Bag Sizes
Industrial 5 micron bags can be supplied for common filter housings as well as non-standard equipment.
INCE filtration’s dedicated PP 5 micron series includes practical industrial dimensions such as:
- 180 × 410 mm
- 180 × 810 mm
- 105 × 230 mm
- 105 × 380 mm
- 150 × 560 mm
- Custom sizes
Different ring and seam configurations are also available.
When replacing an existing bag, confirm:
- Diameter
- Length
- Ring or collar type
- Seam construction
rather than ordering only by micron rating.
Sewn vs. Welded Construction
Fine filtration makes sealing quality increasingly important.
Sewn Bags
Sewn construction is widely used for standard industrial filtration and provides manufacturing flexibility.
Welded Bags
Welded construction eliminates conventional stitching in compatible seam areas and can be useful where customers want reduced needle holes and cleaner seam construction.
3M’s 5 micron bag products, for example, specifically highlight welded seams as a way to avoid sewing holes in their high-performance design.
The appropriate construction depends on the filtration efficiency required and the filter housing design.
When Should You Not Use a 5 Micron Filter Bag?
A 5 micron bag is not automatically the best choice.
Consider a coarser rating when:
- Only large particles need removal
- Solids loading is very high
- 10 or 25 micron already achieves the required result
- Maintaining maximum flow is the priority
Consider a finer or higher-efficiency filtration stage when:
- Critical contaminants are below 5 micron
- Defined retention efficiency is required
- Final product polishing requires tighter particle control
The best filtration grade is the coarsest filter that consistently meets the process requirement.
How to Specify a 5 Micron Liquid Filter Bag
For an accurate quotation or replacement recommendation, provide:
- Micron rating: 5 µm
- Filter media: PP, polyester, PTFE or other
- Bag dimensions
- Ring or collar type
- Sewn or welded construction
- Liquid being filtered
- Target contaminant
- Flow rate
- Operating temperature
- Operating pressure
- Required quantity
- Existing part number or sample, if available
Providing the application is particularly useful because two customers asking for the same “5 micron filter bag” may actually require very different constructions.
5 Micron Liquid Filter Bag FAQ
Is a 5 micron filter finer than a 10 micron filter?
Yes. A 5 micron rating is finer than 10 micron and is used when smaller suspended particles need to be controlled.
Is 5 micron fine enough for industrial water filtration?
For many fine sediment applications, yes. Whether it is sufficient depends on the required outlet quality and the size of the target contamination.
Is a 5 micron bag suitable before RO?
It can form part of an RO pre-treatment train, especially upstream of finer cartridge filtration. The correct design depends on feed-water quality and membrane-system requirements.
Is polypropylene or polyester better at 5 micron?
Neither is universally better. PP is widely selected for chemical compatibility and economical industrial filtration, while polyester can provide advantages in strength, abrasion resistance and temperature capability.
Does a 5 micron bag remove all particles above 5 micron?
Not necessarily. Standard felt bags are often nominally rated. Actual retention efficiency depends on the media construction and rating method.
Will a 5 micron bag plug quickly?
It can if the liquid contains high levels of suspended solids. Coarse upstream filtration can significantly improve service life.
Can INCE filtration manufacture custom 5 micron filter bags?
Yes. INCE filtration supplies different filter media, industrial sizes, ring designs, sewn or welded constructions and OEM configurations for fine liquid filtration.
Fine Particle Removal with 5 Micron Filter Bags
A 5 micron liquid filter bag is most useful when the process requires genuine fine-particle control but does not justify moving immediately to ultra-fine filtration.
The correct system should balance:
5 micron retention + media compatibility + dirt loading + pressure drop + flow rate + filtration area
For clean or moderately contaminated liquids, 5 micron filtration may provide effective clarification or polishing.
For liquids containing a broad range of particle sizes, upstream 25, 50 or 100 micron filtration may improve filter life and operating cost.
INCE filtration supplies 5 micron industrial liquid filter bags in multiple media, dimensions and constructions for water treatment, chemical processing, coatings, oils and general process filtration.
For polypropylene-specific models, dimensions and ring configurations, refer to the dedicated INCE filtration 5 Micron PP Liquid Filter Bags product range.
For application selection, send INCE filtration your:
Liquid type
Target particle size
Current filtration grade
Flow rate
Temperature
Existing bag dimensions
Required quantity
INCE filtration can help determine whether 5 micron filtration is appropriate and recommend a suitable filter media and construction.
Contact INCE filtration for a 5 micron liquid filter bag recommendation, replacement matching, OEM production or custom quotation.
WhatsApp
