A 1 micron needle felt filter bag is designed for fine industrial liquid filtration where small suspended particles must be reduced using depth-filtration media.
Unlike woven mesh, needle felt contains a three-dimensional network of fibers. Contaminants can be captured on the media surface and throughout the thickness of the felt, giving the bag useful dirt-holding capacity for fine sediment, process debris and suspended contamination.
INCE filtration supplies 1 micron needle felt liquid filter bags in polypropylene and polyester materials with common industrial sizes, ring or collar options, sewn or welded construction and OEM configurations. For the broader product family, see 1 Micron Filter Bags.
What Is a 1 Micron Needle Felt Filter Bag?
One micron equals 0.001 millimeter. A 1 micron needle felt liquid filter bag is made from fine synthetic fibers that are mechanically needled together to form a thick, porous filtration structure.
The media does not behave like a precision woven screen. Liquid travels through a complex network of fiber pathways, and particles may be retained on the surface, between fibers and within the media depth.
This mechanism is known as depth filtration.
Why Use Needle Felt at 1 Micron?
Needle felt is widely used for industrial liquid filtration because it combines fine particle reduction with practical solids-holding capacity.
- Fine suspended-particle removal
- Depth filtration
- Good dirt-holding capacity
- Broad PP and polyester availability
- Standard Size #1 and Size #2 options
- Disposable industrial filtration
- Useful protection for downstream equipment

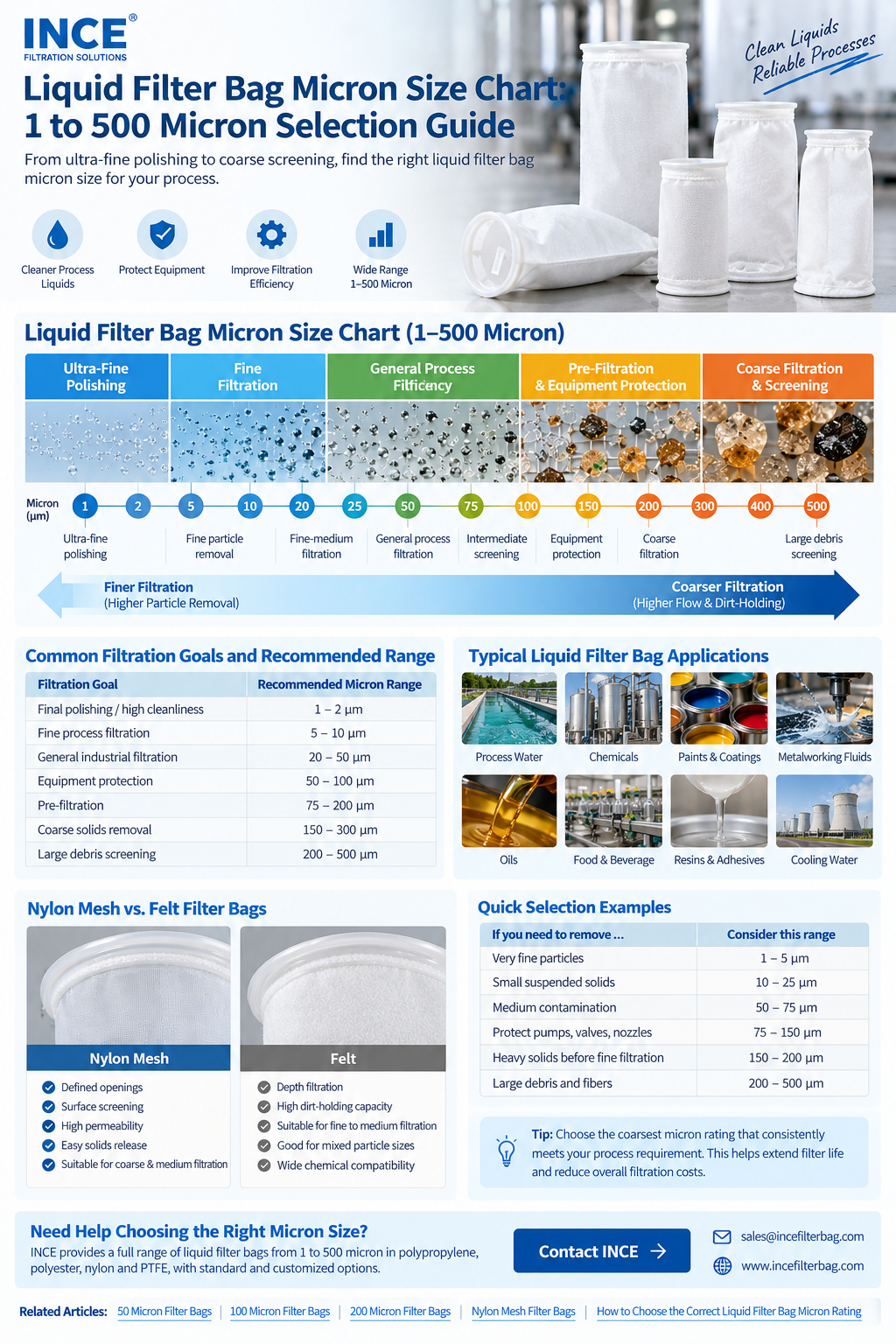

The 1 micron grade sits at the fine end of conventional industrial felt filtration. If you need a broader comparison across ratings, use the Liquid Filter Bag Micron Size Chart.
1 Micron Needle Felt Filter Bag Quick Specifications
| Parameter | Typical Option |
|---|---|
| Micron rating | 1 µm |
| Media type | Needle felt |
| Filtration mechanism | Depth filtration |
| Common materials | Polypropylene / Polyester |
| Typical rating type | Nominal |
| Standard bag sizes | #01 / #02 / #03 / #04 |
| Common Size #1 | Approx. 7 × 16 in |
| Common Size #2 | Approx. 7 × 32 in |
| Construction | Sewn or welded |
| Ring / collar | Plastic or metal options |
| Primary role | Fine industrial liquid filtration |
| OEM sizes | Available |
Exact filtration efficiency depends on media construction and the manufacturer’s rating method.
1 Micron Needle Felt Is Usually Nominal, Not Absolute
This is one of the most important points when specifying a 1 micron felt bag.
A 1 micron nominal filter bag should not automatically be interpreted as removing 100% of all particles larger than 1 micron. Conventional needle felt has a random fiber structure rather than a precision 1 µm opening.
Actual retention depends on fiber diameter, felt density, media weight, thickness, surface treatment, flow velocity, particle shape and solids loading.
If the process requires a defined high-efficiency or absolute cut-off, confirm filtration-efficiency data rather than relying on the micron number alone. The related 1 Micron Liquid Filter Bags for Ultra-Fine Particle Filtration guide explains when a bag may need to be followed by a cartridge or membrane stage.
Needle Felt vs Mesh at 1 Micron
At very fine filtration grades, needle felt is much more relevant than conventional industrial monofilament mesh.
Needle Felt
Uses a random fiber network and primarily provides depth filtration. It can retain irregular particles throughout the thickness of the media and offers practical dirt-holding capacity.
Mesh
Uses defined woven openings and primarily provides surface screening. Mesh is generally more common at much coarser micron ratings.
For conventional 1 micron industrial liquid filtration, needle felt is the more appropriate media construction.
Polypropylene 1 Micron Needle Felt Filter Bags
Polypropylene filter bags are a common choice for 1 micron needle-felt filtration because PP combines broad chemical compatibility, low moisture absorption and economical disposable filtration.
Typical PP applications include process water, chemical filtration, cleaning solutions, electroplating liquids and general manufacturing fluids.
PP is often the first material to evaluate when chemical resistance is more important than elevated-temperature capability.
Polyester 1 Micron Needle Felt Filter Bags
Polyester filter bags provide a different balance of properties, including higher operating-temperature capability, good dimensional stability and strong abrasion resistance in compatible liquids.
Typical applications include industrial oils, paints and coatings, metalworking fluids, process water and compatible chemical systems.
For a side-by-side material decision, see PP vs Polyester Liquid Filter Bags.
PP vs Polyester at 1 Micron
| Feature | 1 Micron PP Felt | 1 Micron Polyester Felt |
|---|---|---|
| Filtration type | Depth | Depth |
| Fine particle reduction | Yes | Yes |
| Acid / alkali compatibility | Generally strong | Application dependent |
| Temperature capability | Moderate | Higher |
| Abrasion resistance | Good | Generally better |
| Water applications | Excellent | Excellent |
| Chemical applications | Often preferred | Verify chemistry |
| Oil applications | Application dependent | Often suitable |
Choose the micron rating for particle control and choose the polymer for chemistry, temperature and mechanical requirements.
1 Micron Felt vs 5 Micron Felt
The difference between 1 micron and 5 micron can significantly affect pressure drop and filter life.
1 Micron
Provides finer particle reduction but usually creates higher filtration resistance and faster solids loading in dirty liquids.
5 Micron
Allows more fine particles through but can provide lower resistance, greater practical throughput and longer operating cycles.
If the process does not actually require removal near the 1 micron range, moving to 5 micron can improve filtration economics. Use the micron rating selection guide when the target particle size is uncertain.
When Should You Use 1 Micron Needle Felt?
A 1 micron felt bag is a strong starting choice when fine suspended particles affect product quality, 5 or 10 micron filtration is too coarse, fine sediment must be reduced, or a downstream cartridge needs better solids protection.
However, finer is not automatically better. Use 1 micron only when those smaller particles actually need to be controlled.
Process Water Filtration
Industrial process water may contain fine rust, sediment, scale fragments, suspended solids and pipeline contamination.
A 1 micron needle felt bag can provide final bag-filtration polishing or serve as a pre-filter before a higher-efficiency cartridge.
Possible staged arrangements include 25 micron → 5 micron → 1 micron or 10 micron → 1 micron, depending on the incoming solids distribution.
Chemical Liquid Filtration
Fine contaminants in chemical processes may include precipitates, undissolved solids, reaction debris, tank contamination and fine process particles.
Polypropylene 1 micron needle felt is often considered for compatible aqueous chemical systems, but the filter material must be checked against chemical identity + concentration + temperature + exposure time.
Paint and Coating Applications
Paint and coating filtration requires a balance between contaminant removal and formulation retention.
A 1 micron bag may be useful where very fine contamination must be reduced, but it can be too restrictive for products containing desirable pigment particles or larger functional solids.
Before selecting 1 micron needle felt, review viscosity, pigment particle distribution, required finish, flow rate and acceptable differential pressure.
Metalworking Fluids
Metalworking and grinding fluids can contain fine metal particles, abrasive debris, grinding fines and process contamination.
A 1 micron felt bag may help reduce fine suspended particles where surface finish or downstream equipment requires tighter filtration. Because these fluids can have substantial solids loading, coarse upstream filtration can help protect the final 1 micron stage.
Protecting Downstream Filter Cartridges
Filter cartridges can provide higher-efficiency final filtration but may cost more than disposable bags. A needle-felt bag can capture part of the incoming solids load before the liquid reaches the cartridge.
Depending on the process, arrangements such as 10 micron bag → 1 micron cartridge or 1 micron felt bag → submicron cartridge can reduce premature cartridge loading.
Dirt-Holding Capacity at 1 Micron
Needle felt provides dirt-holding capacity throughout its thickness, but a 1 micron bag captures a much larger portion of fine particles than a 10, 25 or 50 micron bag.
In a heavily contaminated liquid, it may still load quickly. Warning signs include rapid differential-pressure increase, declining flow, frequent changes and higher pump load.
In these situations, adding a coarser pre-filter can be more effective than simply replacing the 1 micron bag more frequently.
Pressure Drop Matters More at 1 Micron
Fine filtration increases resistance to flow, especially with high viscosity, cold liquids, high flow rates and high solids loading.
If a 1 micron bag creates excessive differential pressure, consider increasing filtration area, using a larger bag, reducing flow per bag or adding coarse pre-filtration.
Size #1 vs Size #2 1 Micron Needle Felt Bags
Size #1
Typically around 7 × 16 inches. Suitable for smaller batches, moderate flow, compact housings and lower solids loading.
Size #2
Typically around 7 × 32 inches. Provides more filtration area and is better suited to larger industrial processes, greater solids loading and longer operating cycles.
At the same 1 micron rating, Size #2 does not filter finer; it simply provides more media area. See Size 1 vs Size 2 Filter Bags for the full dimensional comparison.
Sewn vs Welded 1 Micron Felt Bags
Sewn Construction
Provides broad size availability and flexible customization for conventional industrial filtration.
Welded Construction
Can reduce stitch holes in compatible seam areas and provides a cleaner seam configuration for selected applications.
The seam type should be selected independently from micron rating.
Surface Treatments for Needle Felt
Needle felt may receive treatments such as singeing, glazing or heat treatment to help reduce loose fiber migration, stabilize the surface and improve particle release.
For critical processes, confirm the exact media finish in addition to the nominal micron rating.
Ring and Collar Options
A 1 micron needle felt filter bag must seal correctly inside the housing. Common top configurations can include molded polypropylene collars, stainless-steel rings and galvanized-steel rings.
The replacement specification should include micron rating + material + bag size + ring/collar + seam construction. For housing compatibility and replacement planning, see the Single Bag Filter Housing Buyer’s Guide.
When a 1 Micron Needle Felt Bag Is Too Fine
A 1 micron bag may be unnecessarily restrictive when 5 micron already achieves required cleanliness, solids concentration is high, pressure drop rises too quickly or fine particles do not affect the process.
Moving to 5 or 10 micron may improve flow, filter life and maintenance cost without reducing useful process quality.
When a 1 Micron Felt Bag Is Not Fine Enough
A nominal 1 micron felt bag may not be sufficient when the process requires absolute-rated 1 µm removal, submicron particle control, sterile filtration or very high product-purity requirements.
In those cases, a high-efficiency cartridge or membrane may be more appropriate. The phrase 1 micron alone does not define filtration efficiency.
How to Specify a 1 Micron Needle Felt Filter Bag
- Micron rating: 1 µm
- Material: PP or Polyester
- Media: Needle felt
- Bag size
- Diameter and length
- Ring or collar style
- Sewn or welded construction
- Liquid being filtered
- Operating temperature
- Flow rate
- Liquid viscosity
- Solids concentration
- Required filtration efficiency
- Quantity
For non-standard dimensions, labels and packaging, see INCE filtration’s OEM Filter Bag Manufacturer guide.
1 Micron Needle Felt Filter Bag FAQ
What is a 1 micron needle felt filter bag?
It is a fine industrial liquid filter bag made from a three-dimensional needle-felt fiber structure and rated around 1 µm.
Is 1 micron needle felt a depth filter?
Yes. Needle felt primarily operates by depth filtration.
Is a 1 micron felt bag absolute rated?
Not necessarily. Conventional industrial needle felt is commonly nominal rated, so the specified filtration efficiency should be checked.
What materials are available?
Polypropylene and polyester are two of the most common synthetic needle-felt materials.
Which is better, PP or polyester?
PP is often preferred for many compatible chemical and water-based applications, while polyester offers higher temperature capability and stronger mechanical performance in compatible liquids.
Can I get Size #1 and Size #2?
Yes. Both common industrial formats can be manufactured with 1 micron needle felt.
Does Size #2 filter finer than Size #1?
No. Both can have the same 1 micron rating; Size #2 simply provides more filtration area.
Can 1 micron needle felt protect cartridges?
Yes. It can be used as an upstream fine-filtration stage where the cartridge benefits from reduced solids loading.
Can a 1 micron bag replace a cartridge?
Sometimes, but not when the process requires the higher efficiency, absolute rating or submicron performance of a specialized cartridge.
Can INCE filtration manufacture custom 1 micron needle felt bags?
Yes. INCE filtration supplies standard and custom liquid filter bags with multiple materials, sizes, top designs and OEM configurations.
Choosing a 1 Micron Needle Felt Liquid Filter Bag
A 1 micron needle felt filter bag is best suited to industrial processes that need fine particle reduction, depth filtration, practical dirt holding and disposable bag filtration.
For chemical and water-based applications, polypropylene is often a strong starting material. For compatible liquids requiring greater temperature capability or mechanical strength, polyester may be more suitable.
The final specification should combine 1 micron rating + needle felt material + required efficiency + correct bag size + correct seal + process compatibility.
For the full bag-filter product family, explore Industrial Filter Bags.
Contact INCE filtration for 1 micron needle felt filter bag selection, material matching, Size #1 / #2 replacement or OEM manufacturing.
