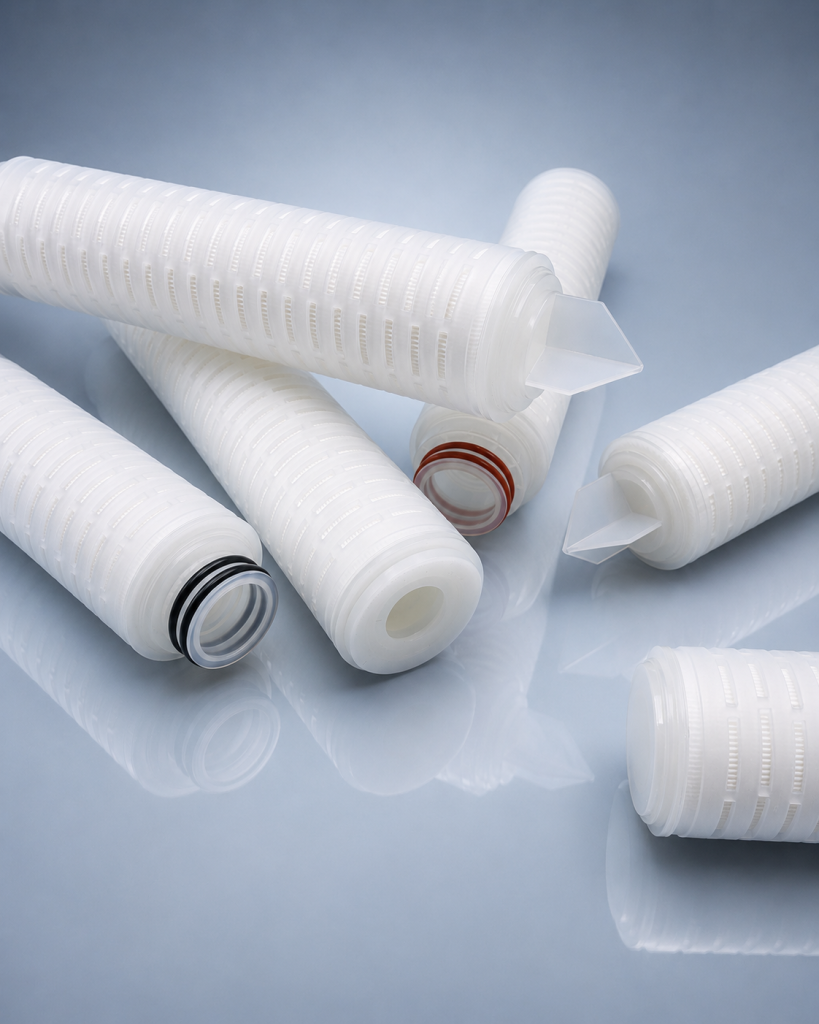

PP Pleated Filter Cartridges – Polypropylene, 0.1–50 µm
INCE filtration manufactures polypropylene pleated filter cartridges using multilayer PP filtration media, non-woven support layers and hot-melt welded construction with no adhesive. The current INCE filtration range covers 0.1–50 µm, 10–70 inch lengths, multiple outside diameters and 215, 222, 226, threaded, flat and fin-style interfaces.
Core PP Cartridge Data
What Is a PP Pleated Filter Cartridge?
A PP pleated filter cartridge is a high-surface-area liquid filter made with polypropylene filtration media, support layers, cage and end caps. INCE filtration PP pleated cartridges are available from 0.1 to 50 µm, 10 to 70 inches long, with multiple 215, 222, 226, threaded, flat and fin-style housing interfaces.
| Parameter | INCE filtration PP Pleated Cartridge Data | Selection Note |
|---|---|---|
| Filter Media | Polypropylene (PP) | Multilayer pleated PP media with non-woven support layers. |
| Micron Rating | 0.1, 0.22, 0.45, 1, 3, 5, 10, 20, 50 µm | Confirm nominal or absolute retention efficiency for the selected media grade. |
| Length | 10–70 inch | Selected 20–40 inch formats can be made as one-piece cartridges. |
| Outside Diameter | 60, 64, 68, 84, 131 mm | Match the housing and cartridge support geometry. |
| Inside Diameter | 28 mm | Custom ID should be confirmed by drawing or sample. |
| End Caps | 215, 222, High 222, 226, threaded, flat, fin styles | Interface and seal geometry must match the housing. |
| Normal Temperature | ≤55°C | Use the exact model and process conditions for final approval. |
| Maximum Condition | 80°C at ΔP ≤0.10 MPa | Do not apply this value independently of differential pressure. |
| Maximum Differential Pressure | At 25°C, ΔP ≤0.42 MPa | Replacement point may be lower depending on the process. |
| Construction | Hot-melt welded, no adhesive | Helps reduce adhesive-related contamination risk. |
PP Pleated Filter Cartridge Features
The following features are organized from the supplied INCE filtration PP cartridge sheet and rewritten for industrial buyers comparing filtration accuracy, service life and housing compatibility.
Multilayer Ultrafine PP Media
The filter medium uses multilayer polypropylene ultrafine fibers designed for stable filtration with low fiber shedding in compatible liquid systems.
Gradient Pore Structure
Gradient pore distribution combines particle interception with a high-strength support layer, improving dirt holding capacity and helping protect downstream terminal filters.
Large Pleated Surface Area
A large membrane filtration area supports higher flow, lower pressure difference and longer service life than compact cartridges with less usable media area.
Wide Chemical Compatibility
Polypropylene construction is suitable for many water-based liquids, process fluids, selected acids, alkalis and industrial chemicals when compatibility is confirmed.
Hot Melt Welded Construction
The cartridge is sealed by hot melt welding without adhesive, helping reduce contamination risk and improve structural integrity.
Multiple Housing Interfaces
Flat, 215, 222, high 222, 226, threaded and fin-style end caps can be selected to match different industrial filter housings.
PP Pleated Cartridge Structure
The cartridge combines PP filtration media, non-woven support layers, an outer support cage, a polypropylene or 316L stainless steel center core and custom end cap interfaces.
Material & Construction Introduction
PP Core
All-polypropylene configurations provide broad compatibility for water and general process filtration.
316L Insert
A stainless steel insert or center core can be selected when greater strength or thermal support is required.
Steam / Hot Water Use
The product sheet recommends a stainless steel insert for cartridges exposed to hot-water sanitization or steam sterilization.
PP Pleated Filter Cartridges by Micron Rating
Filtration accuracy should be selected according to particle size, required cleanliness, downstream equipment sensitivity, flow demand and acceptable pressure drop.
Fine Filtration & Process Polishing
Fine PP cartridges are used where high particle interception and low downstream contamination are required. Lower micron ratings normally create higher pressure drop at the same flow.
General Industrial Liquid Filtration
These ratings balance particle removal, flow rate and service life for process water, RO pretreatment, food and beverage utilities, chemicals and electronics filtration.
Coarse Pre-Filtration & Equipment Protection
Coarser PP Pleated Filter Cartridge provide lower resistance and are commonly used before fine cartridges, membranes, pumps, nozzles or sensitive downstream equipment.
PP Pleated Filter Cartridges by Size
Length, outside diameter and inside diameter must match the housing and sealing system. Send the current cartridge model, drawing or sample dimensions for replacement confirmation.
Length Classification
Available cartridge lengths range from 10 to 70 inches. Selected 20–40 inch cartridges can be produced as one-piece elements.
Outside Diameter
Multiple outside diameters allow PP pleated cartridges to fit standard, sanitary, large-format and OEM housings.
Inside Diameter & Tolerance
The product sheet lists a standard inside diameter of 28 mm and an outside-diameter dimensional tolerance of approximately ±1 mm.
PP Pleated Filter Cartridges by End Cap
End cap geometry controls installation, sealing and cartridge retention. The correct interface should be confirmed from the filter housing, original element or technical drawing.
Flat End
Flat or open-end structure for selected standard cartridge housings.
222 O-Ring
Double O-ring adapter for secure insertion and sealing.
High 222
Extended 222-style adapter for specific housing interfaces.
226 Locking End
226 double O-ring with locking tabs or bayonet-style retention.
215 Adapter
215 connection format for compatible filter housings.
Threaded End
Threaded connection for equipment requiring screw-in installation.
Triangle Fin
Triangular fin end for cartridge positioning and removal.
Semi-Winged Fin
Semi-winged end cap for housing-specific retention and handling.
Flat Peak Cover
Closed flat peak cover for selected single-open-end configurations.
PP Pleated Filter Cartridge Specifications
The specification table below is organized from the supplied PP cartridge product sheet. Final parameters must be confirmed for the exact media grade, dimensions and operating conditions.
| Category | Specification Item | Available Data |
|---|---|---|
| Product Size | Filtration Accuracy | 0.1 µm, 0.22 µm, 0.45 µm, 1 µm, 3 µm, 5 µm, 10 µm, 20 µm, 50 µm |
| Length | 10–70 inches; selected 20–40 inch formats can be manufactured in one piece | |
| Diameter | OD 60, 64, 68, 84 and 131 mm, approximately ±1 mm; ID 28 mm | |
| End Cap Type | Connection Options | 215, 222, high 222, 226, triangle fin, semi-winged fin, flat peak cover, flat end and threaded interface |
| Operating Conditions | Normal Operating Temperature | ≤55°C |
| Maximum Temperature Condition | 80°C at differential pressure ≤0.10 MPa | |
| Maximum Differential Pressure | At 25°C, ΔP ≤0.42 MPa | |
| Note | Hot Water / Steam Sterilization | A stainless steel insert is recommended or required for cartridges exposed to hot-water sanitization or steam sterilization. |
Micron Rating, Retention Efficiency & 0.22 µm Selection
Micron size is only one part of cartridge performance. Final selection should also confirm retention efficiency, test method, operating conditions and any validation requirements.
Nominal vs. Absolute Rating
Do not assume that a listed micron value automatically means absolute retention. Confirm whether the selected PP media grade is nominal, high-efficiency or absolute rated, together with its stated particle-retention efficiency.
Is 0.22 µm Sterilizing Grade?
No conclusion should be made from 0.22 µm alone. A 0.22 µm rating does not by itself establish sterilizing-grade performance. Microbial retention, integrity testing and validation documentation must be confirmed separately when required.
Temperature & Sanitization
INCE filtration lists normal operation at ≤55°C and 80°C at ΔP ≤0.10 MPa. For hot-water sanitization or steam exposure, the exact cartridge construction, stainless-steel insert and cycle conditions must be confirmed before use.
PP vs. PES vs. PTFE vs. Nylon Pleated Filter Cartridges
Use media chemistry and process requirements to choose the cartridge family. Micron rating alone should not determine the material.
| Media | Primary Selection Reason | Typical Use Direction | Product Page |
|---|---|---|---|
| PP | Economical polypropylene construction with broad use in compatible aqueous and industrial process liquids. | Water treatment, RO pretreatment, chemicals, electronics and general process filtration. | Current product |
| PES | Alternative pleated media when PES chemistry and the required fine-filtration performance are preferred. | High-purity water, beverage and process-liquid applications subject to grade-specific validation. | PES Pleated Cartridges → |
| PTFE | Selected where PTFE chemical resistance is required for more aggressive process conditions. | Aggressive chemicals, selected solvents and gas/liquid duties subject to exact media compatibility. | PTFE Pleated Cartridges → |
| Nylon | Selected where nylon media compatibility and mechanical characteristics fit the process. | Inks, coatings, selected solvents and compatible industrial liquids. | Nylon Pleated Cartridges → |
Pure Water Flow Rate Trend
The supplied product sheet shows that pressure drop increases as filtration accuracy becomes finer. The chart below reproduces the relative trend for the listed PP cartridge micron grades; request the formal test report for exact model-specific values.
Relative Pressure Drop vs. Water Flow
Illustrative trend based on the supplied product sheet. Actual performance varies with length, diameter, media area, temperature and test method.
Applications of PP Pleated Filter Cartridges
PP pleated cartridges are suitable for many aqueous and compatible industrial liquids where high surface area, low pressure drop and multiple housing interface options are required.
Seawater RO Pretreatment
Particle control before reverse osmosis membranes in seawater and brackish water systems.
Condensate Filtration
Filtration of condensate and utility water in power, process and industrial systems.
Food & Beverage
Process water and compatible beverage filtration where approved material documentation is confirmed.
Biopharmaceutical Processing
Pre-filtration and process-liquid clarification for compatible pharmaceutical and bioprocess applications.
Microelectronics
Particle control in process water, chemical delivery and supporting electronics manufacturing systems.
Chemical Industry
Filtration of compatible acids, alkalis, chemicals and production liquids.
Petroleum Industry
Utility liquid and selected compatible process filtration in petroleum and petrochemical operations.
OEM Filter Systems
Custom PP cartridges for filtration skids, sanitary housings, water systems and private-label equipment.
Custom PP Pleated Filter Cartridge Service
INCE filtration supports standard replacements and custom PP pleated cartridges for distributors, equipment manufacturers, filtration contractors and industrial end users.
Confirm Filtration Rating
Select 0.1–50 µm according to particle size, final cleanliness and acceptable pressure drop.
Confirm Dimensions
Provide cartridge length, OD, ID, dimensional tolerance and housing drawing or sample.
Select End Cap & Seal
Choose flat, 215, 222, high 222, 226, threaded or fin end caps with suitable gasket material.
Confirm Operating Conditions
Review liquid, temperature, pressure, flow, sanitization requirements and order quantity before production.
Need a Custom PP Pleated Filter Cartridge?
Send your micron rating, length, OD, ID, end cap, gasket material and application. INCE filtration will help confirm a suitable polypropylene pleated cartridge specification.
PP Pleated Filter Cartridge FAQ
Common questions before selecting or ordering polypropylene pleated filter cartridges.
What is a PP pleated filter cartridge?
A PP pleated filter cartridge is a high-surface-area liquid filter made with polypropylene filtration media, support layers, cage and end caps. INCE filtration supplies PP pleated cartridges from 0.1 to 50 µm and 10 to 70 inches long.
What micron ratings are available for PP pleated filter cartridges?
INCE filtration lists 0.1, 0.22, 0.45, 1, 3, 5, 10, 20 and 50 µm PP pleated cartridge ratings on this product page.
Are INCE filtration PP pleated cartridges nominal or absolute rated?
Micron rating alone does not define absolute retention efficiency. Confirm the nominal or absolute classification and particle-retention efficiency for the selected PP media grade before final specification.
Is a 0.22 micron PP pleated cartridge sterilizing grade?
A 0.22 µm rating does not by itself establish sterilizing-grade performance. Required microbial retention, integrity testing and validation documentation must be confirmed separately for the selected cartridge.
What is the maximum operating temperature of an INCE filtration PP pleated cartridge?
The current INCE filtration product data lists normal operation at up to 55°C and a maximum condition of 80°C when differential pressure is no more than 0.10 MPa.
Can PP pleated cartridges be hot-water sanitized or steam sterilized?
The current product sheet recommends or requires a stainless-steel insert for cartridges exposed to hot-water sanitization or steam sterilization. Exact temperature, differential pressure and cycle conditions must be confirmed before use.
What end caps can be supplied?
Available interfaces include flat, 215, 222, high 222, 226 locking, threaded, triangle fin, semi-winged fin and flat peak cover styles.
What is the difference between 222 and 226 PP cartridge end caps?
Both use O-ring sealing interfaces, while 226 styles also use locking tabs or a bayonet-style retention feature. The housing interface must be confirmed before ordering.
How do I choose between 1, 5 and 10 micron PP pleated cartridges?
Choose the coarsest micron rating that achieves the required outlet cleanliness. Finer media generally increases resistance and can shorten service life when solids loading is high.
What information is required for a PP pleated cartridge quotation?
Provide micron rating, cartridge length, OD, ID, end cap type, gasket material, working liquid, operating temperature, pressure, flow rate, quantity and any model number, drawing or sample photos.
